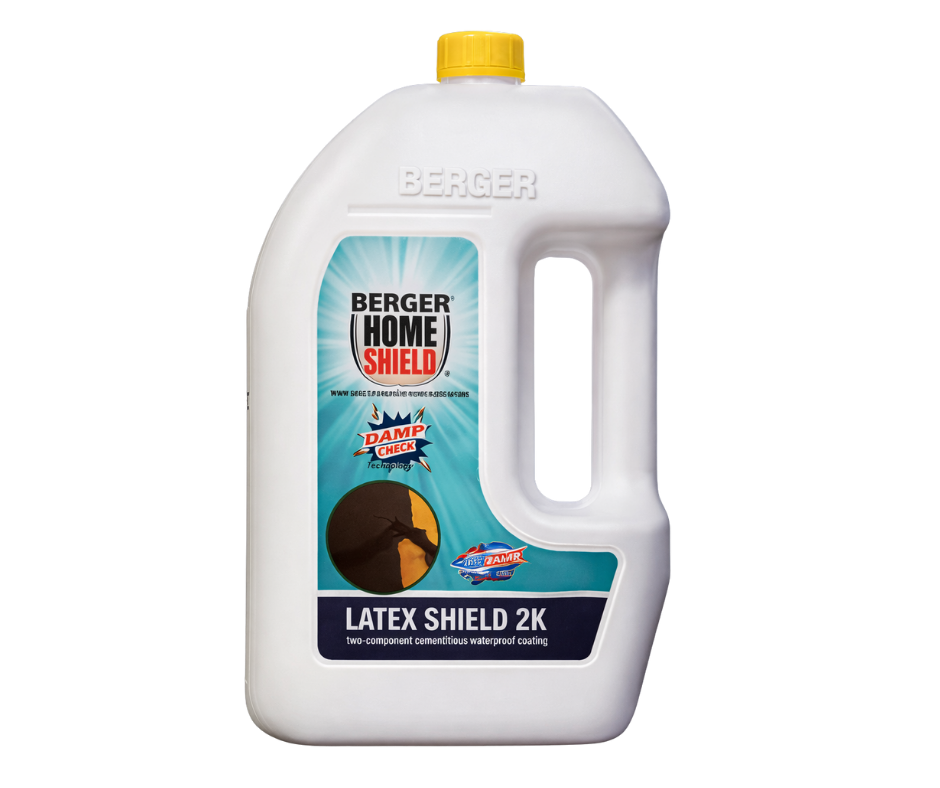

Latex Shield 2K

Key Benefits

Recommended Applications

• Swimming pools and water retaining structures requiring continuous water resistance
• Water tanks (both overhead and underground) for potable and non-potable water
• Terraces and roofs exposed to weather elements
• Bathrooms, toilets, and internal wet areas prone to water exposure
• Basements and underground construction subject to groundwater pressure
• Retaining walls in new construction and refurbishment projects
• Interior and exterior waterproofing of old or new concrete structures
• Damp-proofing of cementitious rendering, brickwork, and blockwork
• Rain-lashed masonry walls requiring weather protection
• Sealing internal basement walls against dampness and moisture
• Parking areas and sunken floors subject to water accumulation
• Any concrete or masonry surface requiring professional-grade waterproofing

Technical Specifications

Product Type	Two-Component Polymer Modified Cementitious Waterproofing Coating
Component A	Liquid Polymer (Acrylic Emulsion)
Component B	Cement-Based Powder with Graded Aggregates & Additives
Application	Interior & Exterior Waterproofing of Concrete, Masonry, Brickwork, Blockwork
Technology	DampChek Technology with Polymer Modified Elastomeric Formulation
Appearance (Mixed)	White to Grey Slurry
Appearance Component A	Milky White Liquid
Appearance Component B	Grey/White Powder
Density (Mixed)	Approximately 1.65 g/cc
Tensile Strength	Approximately 0.5 N/mm²
Key Properties	Waterproofing, Elastomeric, Anti-Carbonation, Flexible, Crack Bridging, Non-Corrosive
Application Method	Brush, Trowel, or Spray
Number of Coats	Minimum 2 coats recommended
Drying Time Between Coats	4-6 hours at 30°C (varies with conditions)
Available Pack Sizes	3 Kg, 15 Kg (Pre-portioned two-component kits)
Coverage (Approximate)	2.5-3.0 sq.m per kg per coat at 1.5mm thickness
Mixing Ratio	As per kit proportion (Pre-measured components – do not alter)
Pot Life	30-45 minutes after mixing
Certification	Green Pro Certified
Storage	Store in cool, dry place. Protect liquid component from freezing

Application Process

1. Surface Preparation

Surface Condition: The surface must be clean, sound, and free from any contamination including dirt, dust, loose materials, debris, oil, grease, curing compounds, or any substance that could impair adhesion.

Cleaning Process: Thoroughly wire brush or mechanically abrade the surface to remove all loose particles and provide a suitable key for adhesion. For heavily contaminated surfaces, use high-pressure water jetting.

Oil & Grease Removal: Any oil, grease, or other contaminants must be completely removed using appropriate degreasing solvents. Clean the area thoroughly and allow to dry.

Crack and Damage Repair: Inspect the surface carefully for cracks, holes, and damaged areas. Repair all defects using suitable crack fillers or polymer modified repair mortar such as Berger Advanced Latex Plus. Allow repairs to cure completely before waterproofing.

Leak Source Elimination: Identify and address all sources of water leakage including concealed pipe leaks, drainage issues, and other water ingress points. All active leaks must be stopped before waterproofing application.

Substrate Strength: Ensure the substrate is structurally sound. Very weak, friable, or failing plaster must be removed and replaced with new, properly cured plaster. Do not attempt to waterproof over compromised substrates.

Moisture Condition: The substrate must be properly dampened to achieve a saturated surface-dry (SSD) condition before application. The surface should be damp but with no standing water or free moisture. This prevents the substrate from absorbing water from the waterproofing coating, which could affect curing and performance.

2. Mixing Procedure

CRITICAL – Component Ratio: Latex Shield 2K is supplied as a pre-portioned kit with precisely measured components. DO NOT alter the ratio or mix partial quantities. Always use complete kit contents to ensure proper performance.

Mixing Sequence: Pour the entire contents of Component A (liquid polymer) into a clean mixing container. Then gradually add Component B (powder) to the liquid while mixing continuously. Always add powder to liquid—adding liquid to powder will create lumps and prevent proper mixing.

Mixing Equipment: Mix using a low-speed mechanical stirrer (pneumatic or electric drill with paddle attachment, minimum 1kW) at 250-300 RPM. High-speed mixing should be avoided as it can entrain excessive air.

Mixing Duration: Mix continuously for 3-5 minutes until a smooth, homogeneous, lump-free slurry is obtained. Ensure complete dispersion of powder into the liquid with no dry pockets or lumps remaining.

Consistency Check: The properly mixed material should have a smooth, creamy consistency suitable for brush or trowel application. The slurry should be thick enough to build adequate film thickness but fluid enough for easy application.

Important: Prepare only the amount that can be applied within 30-45 minutes (pot life). Do not attempt to remix material that has begun to set. Plan work in manageable sections.

3. Application Method

First Coat Application:
Apply the mixed Latex Shield 2K slurry using a stiff brush, trowel, or suitable applicator. Work the material thoroughly into the substrate, filling all pores and ensuring complete coverage. Pay particular attention to corners, joints, construction joints, and areas around penetrations.

For horizontal surfaces (terraces, roofs): Use trowel or squeegee to spread material evenly.
For vertical surfaces (walls): Use brush or trowel, working from bottom to top.

Apply a uniform coat at approximately 1.5mm wet film thickness. Avoid creating excessively thick coats in one application as this can lead to cracking during curing.

Critical Areas Treatment:
– Corners and junctions: Apply additional material and work thoroughly into angles
– Around pipes and penetrations: Create a fillet or round edge for better waterproofing
– Construction joints: Ensure complete coverage and good penetration
– Cracks: Work material into cracks and build up slightly over crack areas

Drying Time: Allow the first coat to dry for 4-6 hours at 30°C before applying the second coat. Drying time may vary depending on ambient temperature, humidity, and air circulation. In cooler or more humid conditions, allow longer drying time.

Second Coat Application:
Apply the second coat in a similar manner to the first coat, ensuring complete coverage. For optimal waterproofing, apply the second coat in a direction perpendicular or at an angle to the first coat to ensure any missed areas are covered.

Additional Coats (If Required):
For water retaining structures such as swimming pools, water tanks, or areas subject to high hydrostatic pressure, apply a third coat for enhanced protection. Allow proper drying time between each coat.

Final Film Thickness: The total dried film thickness after 2-3 coats should be approximately 2-3mm for optimal waterproofing performance.

4. Curing and Protection

Initial Curing: Protect the applied coating from rain, water exposure, direct sunlight, and mechanical damage for at least 24-48 hours after application of the final coat.

Moist Curing (Critical for Performance):
After initial setting (24 hours), begin moist curing by lightly spraying water on the surface. Keep the coating continuously moist for 7 days by spraying water 3-4 times daily. This moist curing is essential for:
– Proper hydration of cementitious components
– Development of full strength and waterproofing properties
– Prevention of premature drying and microcracking
– Achieving optimal durability and longevity

Water Retaining Structures: For swimming pools and water tanks, after the 7-day curing period, fill with water and allow to stand for 7 days. Drain, inspect for any issues, and refill if satisfactory.

Protection During Curing:
– Protect from rain during first 24 hours
– Protect from direct sunlight (use shade cloth if necessary)
– Prevent foot traffic during curing period
– Do not apply under very hot conditions (above 40°C) or very cold conditions (below 10°C)
– Avoid application when rain is forecast within 24 hours

Final Inspection: After complete curing, inspect the entire waterproofed surface for:
– Uniformity of coverage
– Any missed spots or thin areas
– Proper coverage at critical areas (corners, penetrations, joints)
– Any visible defects requiring touch-up

5. Top Coating (Optional)

For aesthetic finish or additional UV protection:
– Interior surfaces: Apply tile adhesive and tiles, or suitable decorative finishes
– Exterior surfaces: Apply exterior paint, texture coating, or tile finishes
– Allow proper curing of Latex Shield 2K before applying top finishes
– Ensure compatibility of top coating materials with the waterproofing system

Critical Application Precautions

Mandatory Don’ts

DO NOT mix partial quantities. The kit is pre-portioned for optimal performance. Mixing partial amounts will alter the polymer-to-cement ratio and compromise waterproofing effectiveness.

DO NOT add extra water for dilution. The consistency is pre-determined for proper application and performance. Adding water reduces strength and waterproofing properties.

Always add powder to liquid, vice-versa NOT recommended. Wrong sequence creates lumps and prevents achieving a homogeneous mixture.

DO NOT expose the applied substrate to water until it is completely cured. Premature water exposure will wash away the coating and prevent proper curing.

Must be protected from direct sunlight at green stage of application. Rapid moisture loss prevents proper curing and can cause cracking.

DO NOT attempt to reactivate or remix material that has begun to set. Once pot life is exceeded, the material cannot be reconstituted. Discard and prepare fresh mixture.

DO NOT apply on surfaces with active water leakage. All water sources must be stopped before waterproofing.

DO NOT apply when rain is forecast within 24 hours. Rain on fresh coating will wash it away and ruin the application.

Application Best Practices

– Work in moderate temperatures (10°C to 35°C) for best results
– Plan work in sections that can be completed within pot life
– Maintain consistent application thickness across the surface
– Ensure adequate ventilation when working in enclosed spaces
– Use clean tools and mixing equipment for each batch
– Test application on a small area first for familiarization
– Follow manufacturer’s guidelines precisely for critical applications
– Document application dates and conditions for warranty purposes

Understanding Two-Component Technology

Why Two Components?

The two-component system provides several critical advantages over single-component waterproofing products:

Component Stability: Separating the liquid polymer from the cementitious powder prevents premature reaction during storage, ensuring long shelf life and fresh, reactive materials at time of use.

Controlled Performance: Mixing activates the chemical reactions at the point of application, allowing the materials to develop their full properties on the substrate rather than in the container.

Optimal Polymer Loading: The two-component system allows for higher polymer content than possible in single-component products, providing superior flexibility and waterproofing performance.

Consistency and Quality: Pre-portioned kits eliminate mixing errors and ensure every application has the same optimized ratio of components, delivering consistent, predictable results.

How the System Works

Component A (Liquid Polymer):
The acrylic polymer emulsion provides flexibility, adhesion, and waterproofing properties. It acts as a binder, coating cement particles and creating a flexible network within the cured coating.

Component B (Cementitious Powder):
The carefully formulated blend of Portland cement, graded aggregates, and additives provides structural integrity, durability, and chemical resistance. The cementitious matrix creates the body and thickness of the coating.

Synergistic Action:
When mixed, the polymer modifies the cementitious matrix, creating a hybrid material that combines:
– Waterproofing effectiveness of polymers
– Strength and durability of cement
– Flexibility to accommodate movement
– Chemical resistance and protective properties
– Excellent adhesion to substrates

Curing Mechanism:
The coating develops properties through two simultaneous processes:
1. **Hydration**: Cement reacts with water to form strong crystalline bonds
2. **Film Formation**: Polymer particles coalesce to create a continuous, flexible waterproof film

This dual curing mechanism ensures the coating develops both strength and flexibility, creating superior waterproofing performance that outlasts single-component systems.

Why Choose Latex Shield 2K?

Professional-Grade Waterproofing

Latex Shield 2K is formulated to professional standards for critical waterproofing applications including swimming pools, water tanks, and structures subject to constant water exposure or hydrostatic pressure. This is not a basic damp-proofing product—it’s an engineered waterproofing system.

Elastomeric Flexibility

The polymer modification creates a truly elastomeric coating that can accommodate minor structural movements, thermal expansion and contraction, and settling without cracking or losing waterproofing integrity—a critical advantage over rigid waterproofing systems.

Corrosion Protection for Reinforced Concrete

Prevents concrete carbonation and provides resistance to chloride ion diffusion—the two primary causes of reinforcement corrosion in concrete structures. This protection significantly extends the service life of reinforced concrete elements, preventing costly corrosion-related deterioration.

Superior Adhesion and Durability

Excellent bonding to concrete, natural stone, and artificial stone ensures long-lasting waterproofing without delamination or peeling. The chemical and mechanical bonds created are far superior to topical coatings.

Non-Corrosive to Steel and Iron

Safe for use on reinforced concrete and metal components. Unlike some waterproofing systems that can promote corrosion, Latex Shield 2K provides passive protection to embedded metals.

Proven Performance in Water Retaining Structures

Specifically formulated and tested for constant water immersion applications. The coating maintains waterproofing integrity even under continuous water exposure in swimming pools, water tanks, and similar structures.

Two-Component Quality Assurance

Pre-portioned kit system eliminates mixing errors and ensures consistent quality across all applications. You get the same optimized formulation every time, unlike field-mixed systems where variations in proportions can compromise performance.

Versatile Application Range

Suitable for both interior and exterior, horizontal and vertical, old and new construction—making it a comprehensive solution for diverse waterproofing challenges across residential, commercial, and industrial projects.

Environmentally Responsible Technology

Green Pro Certification validates Berger’s commitment to environmental sustainability. The product respects both human health and environmental protection while delivering uncompromising waterproofing performance.

Long-Term Value

While premium-priced compared to basic damp-proofing products, Latex Shield 2K provides superior long-term value through enhanced durability, reduced maintenance requirements, and elimination of recurring waterproofing failures that necessitate costly remedial work.

Health, Safety & Quality Guidelines

Personal Protective Equipment

Mandatory PPE during handling and application:
– Heavy-duty rubber gloves for hand protection during mixing and application
– Dust mask or respirator to prevent inhalation of powder during Component B handling
– Safety goggles or face shield to protect eyes from splashes during mixing and application
– Long-sleeved protective clothing and long pants
– Safety boots with slip-resistant soles (especially important on wet surfaces)

Safe Handling Practices

– Keep both components out of reach of children
– Do not ingest or allow contact with food or drinking water
– Avoid prolonged skin contact—wash hands thoroughly after handling
– In case of eye contact, flush immediately with clean water for at least 15 minutes and seek medical attention
– In case of skin irritation, wash affected area with soap and water; seek medical attention if irritation persists
– Ensure adequate ventilation when applying in enclosed or poorly ventilated spaces
– Work in teams when applying in confined spaces for safety
– Avoid breathing dust from Component B powder

Storage Requirements

– Store both components in original sealed containers
– Keep in cool, dry place away from direct sunlight and heat sources
– Protect Component A (liquid) from freezing temperatures
– Keep Component B (powder) away from moisture to prevent premature setting
– Store away from food, animal feed, and drinking water
– Ensure containers are tightly closed when not in use
– Use FIFO (First In, First Out) principle—use older stock first
– Check manufacturing date and use within recommended shelf life

Quality Assurance Practices

– Purchase only from authorized Berger dealers to ensure product authenticity
– Verify that kit components match and are from the same batch
– Inspect both components before mixing—check for signs of deterioration
– Use clean, uncontaminated tools and mixing equipment
– Do not mix different batches or partial kits
– Maintain accurate records of application dates and conditions
– Conduct small test applications on challenging substrates before full application
– Follow manufacturer’s specifications precisely for critical applications
– Document all application parameters for warranty purposes
– Report any product quality issues to the supplier immediately

Why Choose Susmita Paints, Pokhara

• Authentic Berger Home Shield products with genuine warranties
• Fresh stock with proper storage conditions ensuring optimal product performance
• Complete kit availability in both 3kg and 15kg sizes
• Expert technical guidance on two-component waterproofing application
• Professional consultation for complex waterproofing challenges
• Access to complementary products (primers, repair mortars, top coats)
• Assistance with coverage calculations and material estimation
• Product Data Sheets and technical documentation available
• Reliable local service and after-sales technical support
• Competitive and transparent pricing on professional-grade waterproofing
• Connection to experienced contractors skilled in two-component systems
• Support for both small residential and large commercial projects
• Comprehensive waterproofing system recommendations including compatible products
