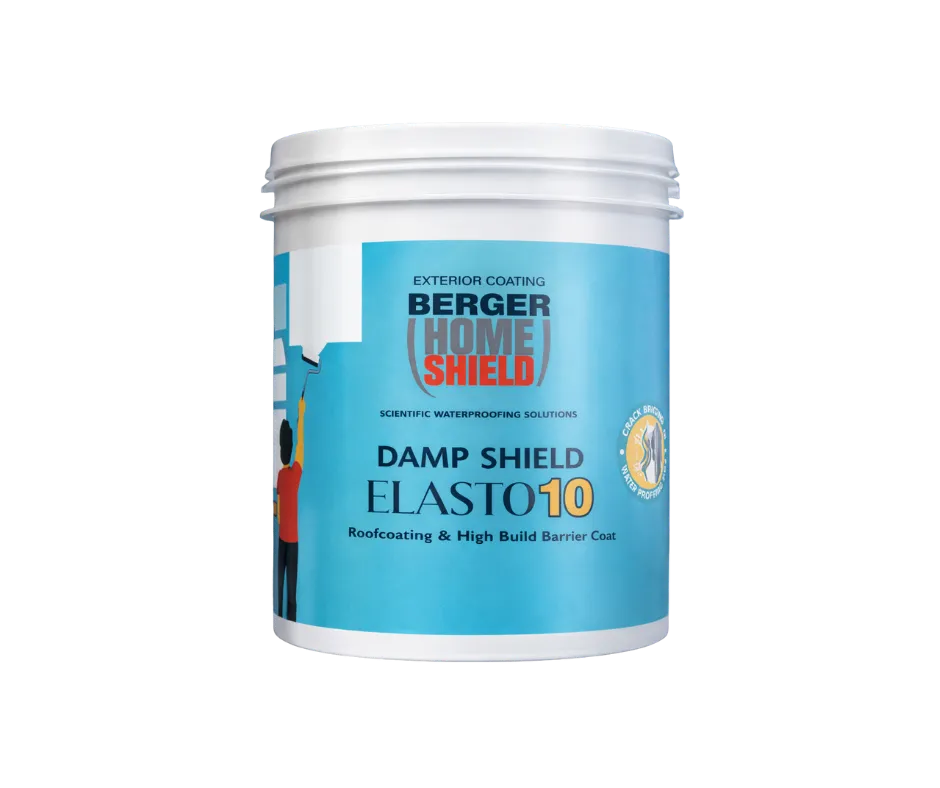

Damp Shield Elasto

Key Benefits

Recommended Applications

• Building roofs and terraces exposed to rain and weather
• Parapets and parapet walls
• Sunshades and canopies
• Exterior vertical walls prone to dampness
• Existing IPS (Integral Plastering System) surfaces
• Sound brick bat coba waterproofing systems
• Cementitious screed surfaces
• As a barrier coat before exterior emulsion application
• Balconies and exposed concrete surfaces
• Chajjas (projecting elements) and cornices
• Any exterior surface requiring waterproofing and crack-bridging protection

Technical Specifications

Product Type	PU Modified Elastomeric Liquid Waterproofing Membrane
Application	Roofcoating & High Build Barrier Coat for Exterior Surfaces
Composition	PU Modified Binders, Synthetic Fibers, Special PP Fibers, Polymers
Reinforcement	Fiber Reinforced (Impregnated with Synthetic Fiber)
Form	Liquid
Color	White (Standard)
Elongation	Up to 160%
Dry Film Thickness (DFT)	Up to 130 microns as barrier coat
Key Properties	Waterproofing, Crack Bridging, Anti-Carbonation, Fiber Reinforced, High Build
Application Method	Brush or Roller
Surface Type	Horizontal (Roofs, Terraces) & Vertical (Walls) Applications
Available Pack Sizes	1 Ltr, 4 Ltrs, 10 Ltrs, 20 Ltrs
Warranty	6 Years Waterproofing Warranty (T&C Applicable)
Certification	Green Pro Certified
Storage	Store in cool, dry place away from direct sunlight

Application Process

1. Surface Preparation

Critical First Step: The surface to be applied should be clean, sound, and free from any kind of contamination, dirt, loose materials, or debris.

Cleaning: Thoroughly wire brush the surface to remove all loose particles. Clean the dust using an air compressor or by water jetting to ensure complete removal of contaminants.

Oil & Grease Removal: Any oil and grease must be completely removed using appropriate degreasing solvents. This is crucial for proper adhesion.

Surface Repairs: Any damaged surface must be repaired using crack fillers or polymer modified repair mortar like Berger Advanced Latex Plus. Fill all cracks, holes, and damaged areas properly.

Leak Prevention: Take care of leakages in concealed pipes or all other sources of water prior to application of the product. Address all water sources before waterproofing.

Plaster Condition: Very weak plaster must be replaced with a new one to ensure a sound substrate for waterproofing.

Pre-Wetting: Finally, the substrate must be properly pre-wetted to achieve a saturated surface-dry (SSD) condition. The surface should be damp but with no standing water.

2. Mixing

Mixing Procedure: Add Damp Shield Elasto 10 to clean water and start mixing. Do not add water to the product—always add product to water.

Mixing Equipment: Mix constantly with a stirrer using a pneumatic or electric power tool (minimum 1kw) at slow speed of 250-300 rpm.

Mixing Duration: Continue mixing for 3-5 minutes to achieve a homogeneous, putty-like consistency. Ensure no lumps remain.

Dilution Ratios:
– For Vertical Application (Walls): Use recommended dilution as per product data sheet
– For Horizontal Application (Roofs/Terraces): Use proper ratio available in PDS (Product Data Sheet)
– For Barrier Coat: 40% dilution is typical (verify with PDS for specific application)

Important: Prepare only the quantity that can be applied within the working time. Do not mix more than can be used in one session.

3. Product Application

Application Tools: Apply using brush or roller depending on surface type and area. For large areas, roller application is more efficient.

First Coat: Apply the first coat evenly ensuring complete coverage of the entire surface. Pay special attention to corners, edges, and joints. Allow to dry thoroughly.

Drying Time: Allow adequate drying time between coats (typically 4-6 hours depending on weather conditions).

Second Coat: Apply the second coat in perpendicular direction to the first coat for complete coverage and maximum waterproofing effectiveness.

Coat Thickness: Apply sufficient coats to achieve the recommended DFT of up to 130 microns for optimal barrier coat performance.

Critical Areas: Pay extra attention to areas prone to water accumulation, corners, junctions, and penetrations. Additional coats may be applied in these areas.

Working Conditions: Apply when ambient temperature is between 10°C and 40°C. Avoid application during rain or in excessively humid conditions.

4. Self-Priming Application (Optional)

When properly diluted, Damp Shield Elasto 10 can double as a primer, eliminating the need for separate primer coats and simplifying the application process. Follow dilution recommendations in the Product Data Sheet for primer application.

5. Top Coat Application (Optional)

After Damp Shield Elasto 10 has fully cured, apply exterior emulsion top coats (such as 2 coats of Berger Long Life or other recommended exterior paints) for complete protection and aesthetic finish.

6. Curing and Protection

Curing Time: Allow the coating to cure completely before exposing to water or foot traffic. Full curing may take 3-7 days depending on ambient conditions.

Weather Protection: Protect freshly applied coating from rain for at least 24 hours. If rain is expected, postpone application.

Final Inspection: After curing, inspect for any missed spots, pinholes, or thin areas. Touch up as necessary before applying top coats.

System Recommendations

Complete PU Waterproofing System

For comprehensive roof waterproofing protection, Berger recommends the following system:

Step 1 – Base Coat: Apply Damp Shield Elasto 10 at 40% dilution as barrier coat

Step 2 – Top Coat: Apply 2 coats of Berger Long Life or other recommended exterior emulsion

Total System Benefits:
– Superior waterproofing with 6-year warranty
– Enhanced paint durability
– Crack bridging up to 160% elongation
– Anti-carbonation protection
– UV resistance (when top coated)
– Complete barrier against dampness and water seepage

Comparison with Other Roof Waterproofing Methods

Damp Shield Elasto 10 Advantages:
– Water-based and eco-friendly (vs. solvent-based PU)
– Easy to apply without special equipment (vs. APP membrane)
– Superior crack-bridging ability (vs. normal screed or lime concrete)
– Low maintenance requirements
– Can fill cracks up to 3mm
– More effective than brick bat coba or conventional terracing methods

Why Choose Damp Shield Elasto 10?

Advanced PU Modified Technology

The polyurethane modified formulation provides superior elasticity, adhesion, and durability compared to conventional waterproofing coatings. The PU modification enhances flexibility and ensures long-lasting performance under varying weather conditions.

Fiber Reinforcement for Extra Strength

Unlike ordinary liquid membranes, Damp Shield Elasto 10 is reinforced with synthetic fibers and special PP fibers that provide additional strength, crack resistance, and durability. This fiber network creates a tougher, more resilient waterproofing layer.

Exceptional Crack Bridging Capability

With 160% elongation capacity, this product can stretch and accommodate building movements and minor crack formation without compromising waterproofing integrity. This flexibility is crucial for long-term performance as buildings naturally expand and contract.

High Build Barrier Protection

The ability to achieve DFT up to 130 microns creates a substantial barrier layer that effectively blocks water ingression. This high-build characteristic ensures robust protection that surface coatings cannot match.

Anti-Carbonation Shield

Carbonation is a major cause of reinforcement corrosion in concrete structures. Damp Shield Elasto 10 reduces carbon dioxide and chloride ion diffusion, providing critical protection to embedded rebars and significantly extending structural service life.

Versatile Application Options

The product’s versatility allows it to be used on both horizontal surfaces (roofs, terraces, slabs) and vertical walls with appropriate dilution. This multi-surface capability makes it a comprehensive solution for complete building envelope waterproofing.

Extended Paint Durability

As an excellent barrier coat, Damp Shield Elasto 10 significantly extends the life of exterior paint by protecting it from dampness, efflorescence, and water-related deterioration. This reduces maintenance frequency and long-term costs.

Self-Priming Convenience

When diluted appropriately, the product can serve as its own primer, eliminating the need for separate priming steps and reducing both material costs and application time.

Proven Warranty Protection

The 6-year waterproofing warranty (subject to terms and conditions) demonstrates Berger’s confidence in product performance and provides customers with long-term assurance and protection for their investment.

Environmental Responsibility

Green Pro Certification validates Berger’s commitment to environmental sustainability. The water-based formulation is safer for applicators and the environment compared to solvent-based alternatives.

Health, Safety & Quality Guidelines

Personal Protective Equipment

While using Damp Shield Elasto 10, always wear:
– Rubber gloves to protect hands
– Dust mask to prevent inhalation during mixing
– Safety goggles to protect eyes from splashes
– Protective clothing as appropriate

Safe Handling

– No added lead, mercury, or chromium compounds
– Keep out of reach of children
– Do not ingest or allow contact with food
– In case of eye contact, flush immediately with plenty of water and seek medical attention if irritation persists
– If skin contact occurs, wash thoroughly with soap and water

Storage Recommendations

– Store in cool, dry place away from direct sunlight and heat sources
– Keep containers tightly closed when not in use
– Protect from freezing temperatures
– Use within recommended shelf life for optimal performance

Application Best Practices

– Always test on a small area first
– Ensure proper surface preparation—this is critical for performance
– Follow recommended dilution ratios precisely
– Do not apply during rain or when rain is imminent
– Maintain proper ambient temperature during application (10°C to 40°C)
– Allow adequate drying time between coats
– Do not over-dilute or under-dilute the product

Quality Control

– Use clean, potable water for mixing
– Ensure mixing equipment is clean and in good condition
– Check product for any signs of deterioration before use
– Follow manufacturer’s guidelines for application thickness
– Inspect applied coating for uniformity and coverage
– Address any defects immediately before they cure
