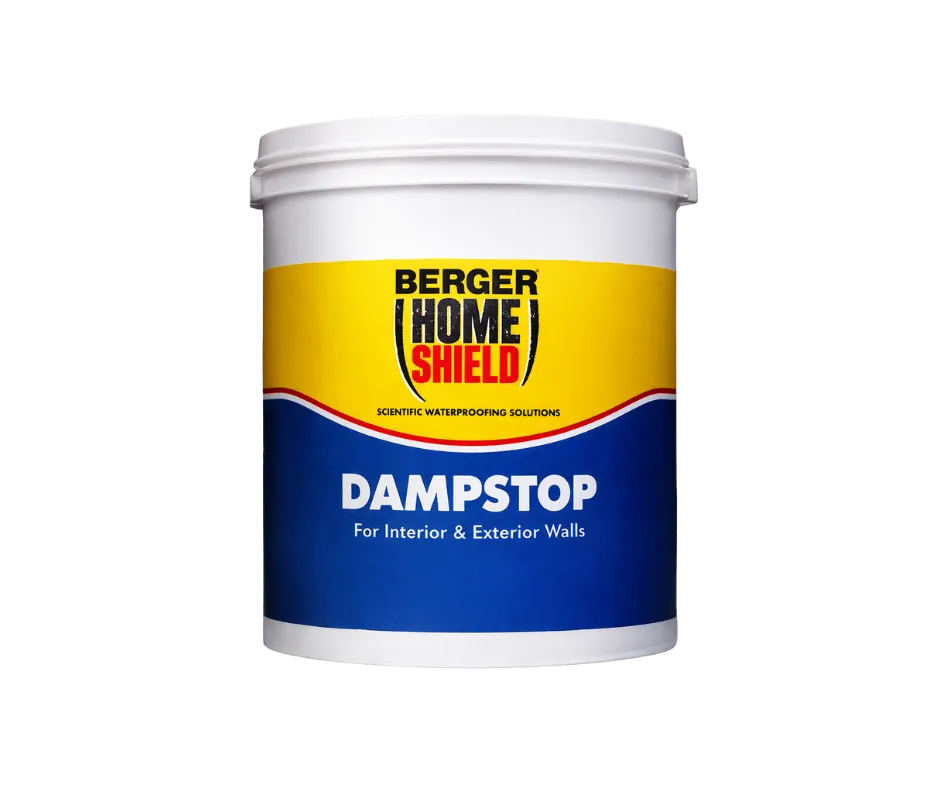

Dampstop

Key Benefits

Recommended Applications

• Bathrooms, kitchens, and wash areas prone to water exposure
• Interior walls showing rising dampness or efflorescence
• Exterior walls of water tanks and reservoirs
• Basement and retaining walls subject to groundwater pressure
• Any concrete or masonry structure prone to damp or already affected
• Walls adjacent to wet areas requiring waterproofing protection
• Surface protection system for structural concrete from rising dampness
• Old or new concrete/masonry walls requiring damp-proofing
• Areas experiencing salt efflorescence or mineral deposits
• Underground structures exposed to negative water pressure
• Foundation walls and structural elements in contact with soil

Technical Specifications

Product Type	Single Pack Polymer Modified Cement-Based Waterproofing Coating
Application	Interior & Exterior Walls Waterproofing
Composition	Flexible Re-dispersible Polymers, Nano Technology Additives, Crystalline Penetrative Salts, Cement Base
Technology	Crystalline & Nano Technology with DampChek Formula
Form	Powder (Single Pack)
Color	White
Waterproofing Capacity	Up to 7 bars positive & 4 bars negative hydrostatic pressure
Key Properties	Waterproofing, Breathable, Flexible, Crack Bridging, Anti-Efflorescence
Application Method	Brush, Trowel, or Spray
Mixing Tool	Pneumatic or Electric Power Tool (1kW) at 250-300 RPM
Mixing Time	3-5 minutes
Consistency After Mixing	Homogeneous Putty-like
Inter-Coat Period (at 30°C)	4-6 hours
Available Pack Sizes	2 Kg, 5 Kg, 10 Kg, 20 Kg
Coverage (Self Priming Coat 1:1)	Approximately 15-18 sq. ft per kg
Coverage (Putty Coat 3:1)	Approximately 20-25 sq. ft per kg
Certification	Green Pro Certified
Storage	Store in cool, dry place away from moisture

Application Process

1. Surface Preparation

Cleaning: The surface to be applied should be clean and sound, free from any kind of contamination, dirt, loose materials, or debris. Thoroughly wire brush the surface to remove all loose particles.

Dust Removal: Clean the dust using an air compressor or by water jetting to ensure complete removal of contaminants. Proper cleaning is critical for adhesion.

Oil & Grease Removal: Any oil and grease must be completely removed using appropriate degreasing solvents. This ensures proper bonding of the waterproofing coating.

Surface Repairs: Any damaged surface must be repaired using crack fillers or polymer modified repair mortar like Berger Advanced Latex Plus. Fill all cracks, holes, and damaged areas properly.

Leak Prevention: Take care of leakages in concealed pipes or all other sources of water prior to application of the product. Address all water sources before waterproofing.

Plaster Condition: Very weak plaster must be replaced with a new one to ensure a sound substrate. Do not attempt to waterproof over failing substrates.

Pre-Wetting: Finally, the substrate must be properly pre-wetted to achieve a saturated surface-dry (SSD) condition. The surface should be damp but with no standing water or free moisture.

2. Mixing Procedure

CRITICAL – Proper Sequence: Always add DampStop powder to clean water. Never add water to powder—this is essential for proper consistency.

Mixing Equipment: Mix constantly with a stirrer using a pneumatic or electric power tool (minimum 1kW) at slow speed of 250-300 RPM. High-speed mixing is not recommended.

Mixing Duration: Continue mixing for 3-5 minutes to achieve a homogeneous, putty-like consistency. Ensure no lumps remain and the mixture is completely uniform.

Dilution Ratios by Application:
– Self-Priming Coat: Water dilution 1:1 (1 part DampStop to 1 part water)
– First Putty Coat: Water dilution 3:1 (3 parts DampStop to 1 part water)
– Second Putty Coat: Water dilution 3:1 (3 parts DampStop to 1 part water)

Important: Prepare only the quantity that can be applied within the working time. Do not mix more than can be used in one session as the material will begin to set.

3. Application Steps

Step 1 – Self-Priming Coat (1:1 dilution):
Apply using a paint brush on the properly prepared bare plaster/concrete surface. This coat penetrates the substrate and provides the base for subsequent coats. Allow to dry for 4-6 hours at 30°C before proceeding.

Step 2 – First Putty Coat (3:1 dilution):
Apply using putty knife or trowel in a uniform layer. This coat fills surface irregularities and begins building the waterproof barrier. Allow to dry for 4-6 hours at 30°C before proceeding.

Step 3 – Second Putty Coat (3:1 dilution):
Apply the final coat using putty knife or trowel. Level the applied area properly with the putty application tool to achieve a smooth, uniform finish. Allow to dry for 4-6 hours at 30°C before top coating.

Critical Areas: Pay extra attention to corners, joints, penetrations, and areas prone to water accumulation. Additional coats may be applied in these vulnerable areas.

Severe Dampness: In cases of severe dampness or high water pressure conditions, apply an additional primer coat and putty coat for enhanced protection.

4. Top Coat Application (Optional)

After DampStop has fully cured, apply finish coats as desired:
– Interior walls: Apply 2 coats of interior emulsion paint
– Exterior walls: Apply recommended exterior emulsion or texture coating

The waterproofed surface provides an excellent base for paint adhesion and significantly extends paint life.

5. Curing and Protection

Drying Time: Allow each coat to dry for 4-6 hours at 30°C before applying the next coat. Drying times may vary with ambient temperature and humidity.

Complete Curing: Full waterproofing performance develops over 7-14 days as the crystalline technology activates with substrate moisture.

Weather Protection: Protect freshly applied coating from rain or water exposure for at least 24 hours. Avoid application when rain is expected.

Final Inspection: After curing, inspect for uniformity of coverage. Touch up any missed spots or thin areas before applying final finish coats.

Usage Precautions & Guidelines

Critical Don’ts

Do NOT add extra water for dilution beyond the specified ratios. Over-dilution compromises waterproofing effectiveness and reduces strength.

Do NOT add any powder material externally. The product is precisely formulated and adding materials will affect performance.

Always add powder to liquid, vice-versa NOT recommended. Wrong sequence creates lumps and prevents proper mixing.

Strictly NOT recommended to use in cement slurry. DampStop is designed as a standalone waterproofing coating, not an additive.

Do NOT apply on surfaces with active water leakage. All water sources must be stopped before waterproofing application.

Application Best Practices

– Apply in temperatures between 10°C and 40°C for optimal curing
– Ensure proper ventilation during application in enclosed spaces
– Work in manageable sections to maintain consistent wet edges
– Follow manufacturer’s mixing and dilution ratios precisely
– Use clean tools and mixing equipment
– Do not thin or remix material that has begun to set
– Allow adequate drying time between coats—rushing compromises results

Surface Suitability

– Make sure application is on properly prepared bare plaster/concrete
– Do not apply over painted surfaces—strip paint first
– Do not apply over weak, friable, or failing substrates
– Ensure substrate is structurally sound before waterproofing
– Surface must be pre-wetted to SSD condition before application

Understanding Crystalline & Nano Technology

How the Technology Works

DampStop’s revolutionary formulation works through a multi-stage waterproofing mechanism:

Stage 1 – Penetration: When applied, the flexible polymers and crystalline salts penetrate into the pores and capillaries of the cementitious substrate.

Stage 2 – Crystallization: Upon contact with moisture naturally present in the substrate, the crystalline components transform into insoluble nano crystals. This transformation occurs automatically and continuously.

Stage 3 – Pore Blocking: The formed nano crystals expand within the pores, effectively blocking them at the molecular level. This creates a permanent physical barrier against water ingress.

Stage 4 – Self-Healing: If new micro-cracks develop, any moisture entering activates additional crystallization, essentially allowing the waterproofing to self-heal and adapt to changing conditions.

Dual-Action Protection

Surface Film Formation: The polymer modified coating creates a flexible, waterproof film on the surface that accommodates minor movements and bridges hairline cracks.

Deep Penetration: The crystalline technology penetrates deep into the substrate, creating waterproofing throughout the depth of the material, not just on the surface.

This dual-action approach provides redundant protection—even if the surface film is damaged, the deep crystalline barrier continues protecting the structure.

Breathability Mechanism

Unlike impermeable membranes that trap moisture, DampStop creates a “smart” barrier:
– Blocks liquid water: The nano crystal structure prevents liquid water molecules from passing through
– Allows vapor transmission: Water vapor molecules (much smaller than liquid water) can pass through, allowing trapped moisture to escape
– Prevents pressure build-up: This breathability prevents damaging hydrostatic pressure from building up behind the waterproofing

Why Choose Home Shield DampStop?

Proven Hydrostatic Pressure Resistance

With protection up to 7 bars positive and 4 bars negative pressure, DampStop can handle significant water pressure from both external sources (rain, groundwater) and internal sources (water tanks, bathrooms), making it suitable for the most demanding applications.

Revolutionary Nano Crystal Technology

The automatic transformation into solid nano crystals creates permanent, self-activating waterproofing that continues working throughout the life of the structure. This technology represents a quantum leap over traditional waterproofing methods.

Breathable Yet Waterproof

The unique ability to block liquid water while allowing vapor transmission prevents the common problem of trapped moisture causing blistering, peeling, or structural damage—a critical advantage over non-breathable waterproofing systems.

Flexible and Crack Bridging

The polymer modified formulation accommodates normal building movements and bridges hairline cracks, maintaining waterproofing integrity even as structures settle and shift over time.

Superior Adhesion and Durability

Brilliant bond strength with cementitious substrates ensures long-lasting protection without delamination or peeling. The chemical bonding is far superior to mechanical adhesion of surface coatings.

User-Friendly Single Pack System

Ready-to-use formulation requiring only water addition eliminates mixing errors and simplifies application. No need for multiple components or complex mixing procedures.

Comprehensive Damp Protection

Effective against all forms of dampness—rising damp, penetrating damp, condensation, and hydrostatic pressure from both positive and negative sides—making it a complete waterproofing solution.

Anti-Efflorescence Properties

Prevents the formation of unsightly white salt deposits (efflorescence) that commonly appear on damp walls, maintaining aesthetic appearance and indicating effective moisture control.

Cost-Effective Long-Term Solution

While providing professional-grade performance, DampStop offers excellent value by eliminating recurring dampness problems, reducing maintenance costs, and extending the life of structures and finishes.

Environmentally Responsible

Green Pro Certification validates Berger’s commitment to environmental sustainability. The product respects both human health and the environment while delivering superior performance.

Health, Safety & Quality Guidelines

Personal Protective Equipment

While using DampStop, always wear:
– Rubber gloves to protect hands during mixing and application
– Dust mask to prevent inhalation of powder during mixing
– Safety goggles to protect eyes from splashes
– Long-sleeved protective clothing as appropriate

Safe Handling

– Keep out of reach of children
– Do not ingest or allow contact with food or drinking water
– Avoid prolonged skin contact—wash hands after handling
– In case of eye contact, flush immediately with plenty of water for 15 minutes
– Seek medical attention if irritation persists after eye exposure
– Ensure adequate ventilation when applying in enclosed spaces

Storage Requirements

– Store in original sealed containers in cool, dry place
– Keep away from moisture to prevent premature setting
– Protect from direct sunlight and heat sources
– Keep containers tightly closed when not in use
– Use within shelf life for optimal performance
– Rotate stock—use older material first (FIFO principle)

Quality Assurance

– Purchase only from authorized Berger dealers to ensure authenticity
– Check manufacturing date and use within shelf life
– Inspect product for lumps or hardening before use
– Use clean tools and mixing equipment
– Follow recommended mixing ratios precisely—do not improvise
– Maintain consistent application thickness across the surface
– Document application dates and conditions for warranty purposes
